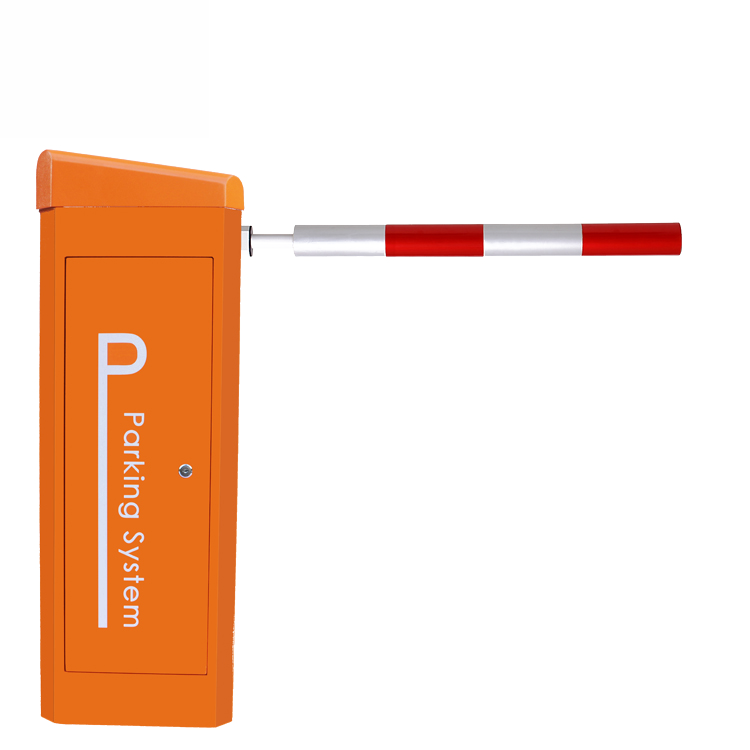

IP65 24V DC Servo Motor Barrier Gate Telescopic Arm Barrier Gate

  • 1
  • 2

Brand Name : WONSUN

Model Number : DZ-138

Certification : CE

Place of Origin : China

MOQ : 1PC

Price : Negotiable

Payment Terms : T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,

Supply Ability : 1000 Sets/Month

Delivery Time : 3-7 working days after received your payment

Packaging Details : Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Arm type : straight, folding, fencing

Color : Yellow, orange, grey-black

Operation time : 0.3,0.6,0.9,2,4sec run speed adjustable

Machine Case : Varnished 2.0mm steel plate

Working environment temperature : -40 ℃ ~ +85 ℃

Product name : High End Servo Motor Barrier Gate DC Motor Backup Battery Car Park Barriers

Contact Now

IP65 24V DC Servo Motor Barrier Gate Telescopic Arm Vehicle Barrier Gate





Quick details:

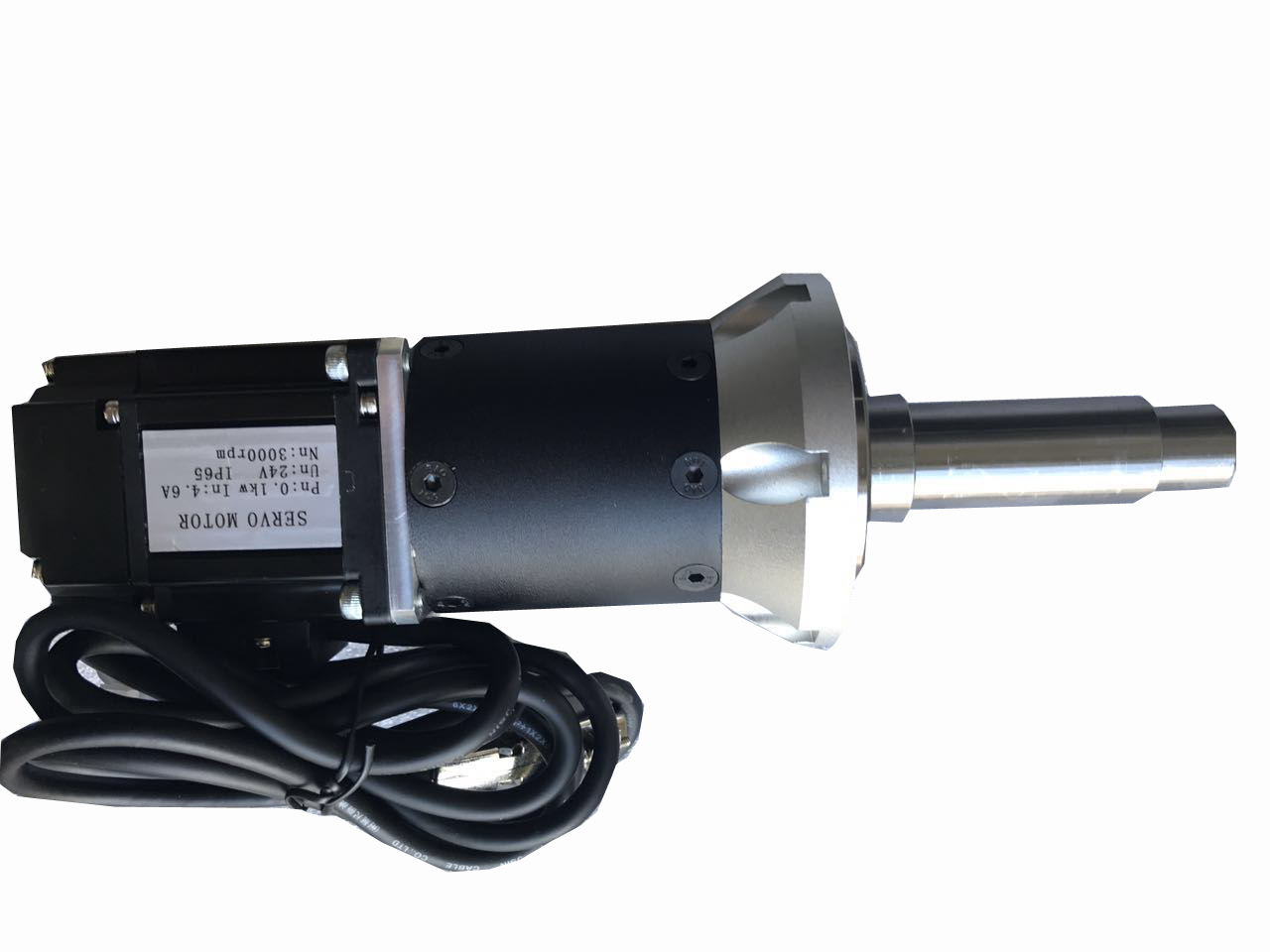

The motor uses the DC 24V permanent magnet synchronous motor (PMSM motor), apply to the global voltage, high-speed operation and rapid response, frequent positive &negative operation in 24 hours does not heat, speed time can be adjusted based on the vehicle flow and arm length, safe and reliable. The series servo barrier gate is free-debugging and free-maintenance, achieve the fully automation and intelligentize, and the barrier arm open/close is fast and smooth, easy to use and safe.
IP65 24V DC Servo Motor Barrier Gate Telescopic Arm Barrier Gate






Technical Data:




                                                               DZ-138 Vehicle Barrier Gate


DZ-138 barrier gate V06T V09T
Max Boom Length and Diameter 2500mm, Ф75mm 3000mm, Ф75mm
Open/Close Time 0.6sec 0.9sec,2.5sec,4.5sec
Power Supply 24/100/240VAC,50/60Hz 24/100/240VAC,50/60Hz
Power Consumption max.150W 100w
Machine Case Varnished 2.0mm steel plate Varnished 2.0mm steel plate
Machine Case Size(W*D*H) 342*312*959mm 342*312*959mm
Net Weight 43kg  42.6kg
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Driving Method Servo motor  Servo motor
Protection System(IP) 54  54
Insulation Class  F  F
Relative Humidity ≤90%  ≤90%
Motor Speed 3000r/min  3000r/min
Remote Control Distance  ≤100m (open, sunny weather) ≤100m (open, sunny weather)
Output Torque  1.2N.M*140=160N.M  0.86N.M*140=120N.M
Running Noise＜  45dB  45dB
Surface Treatment  Outdoor metal powder electrostatic spraying Outdoor metal powder electrostatic spraying
IP65 24V DC Servo Motor Barrier Gate Telescopic Arm Barrier Gate

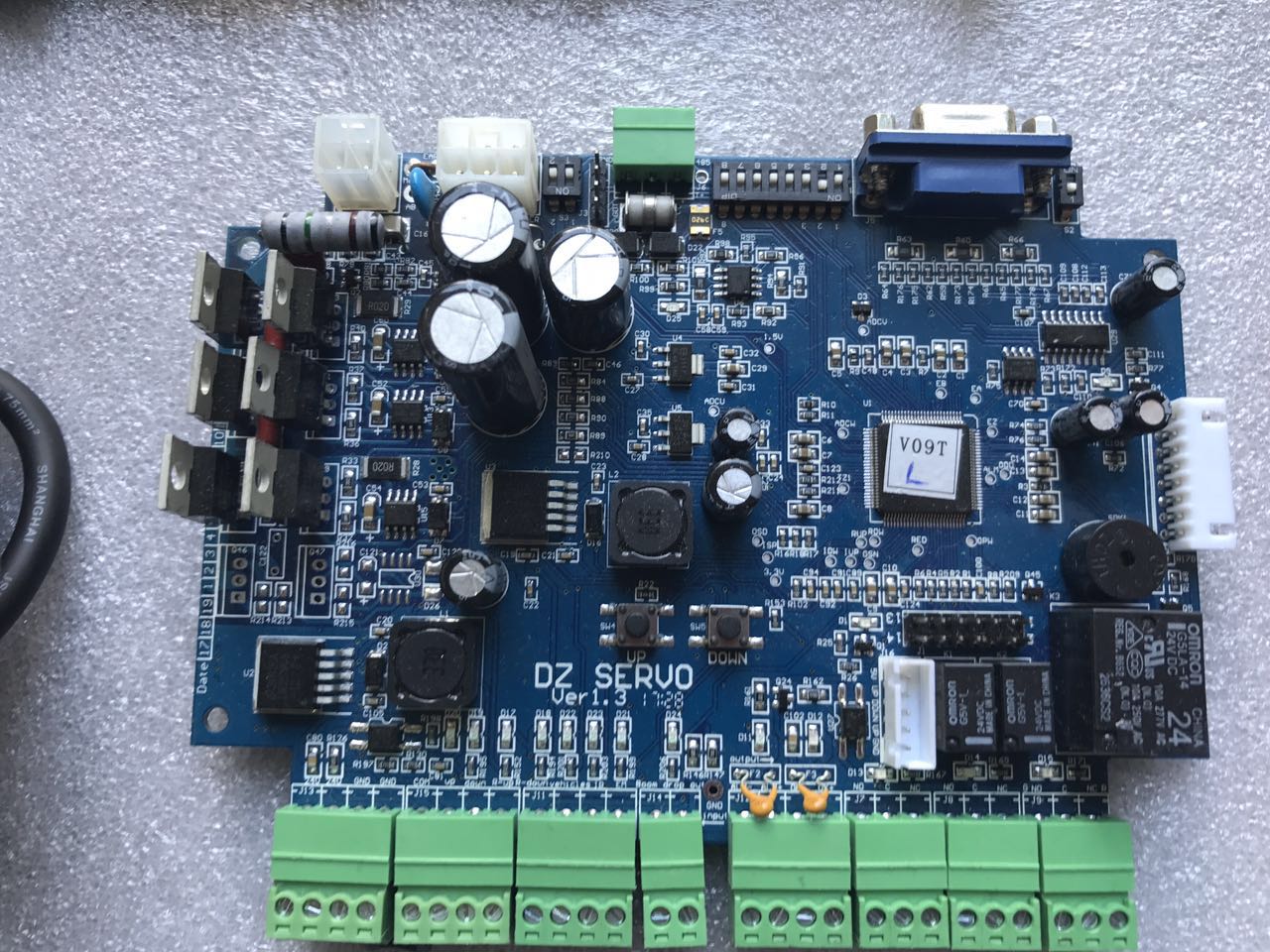

                                                               DZ Controller


IP65 24V DC Servo Motor Barrier Gate Telescopic Arm Barrier Gate
Voltage(±10%) 100-240 volt 100-240 volt
Frequency(Hz) 50-60 50-60
Max Power Consumption(watt)  8  8
Fuse F5AH  F5AH
Control Voltage  24V DC/max.3000mA  24V DC/max.3000mA
Input-end Number  8  8
Open Collector Output Number 2  2
Zero Level Reversal Relay Number 3  3
Operating Temperature Range℃ -45℃~+85℃  -45℃~+85℃
Protection System(IP)  20  20
Weight(gram)  450gram  450gram
Dimension mm(L-W-H)   158*126*55






Operation Time and Boom Length Configuration Parameter


Boom Type(meter) Operation Time(seconds) Boom Height(meter)
Fast speed boom≤2.5 0.6 0.83
Fast speed boom≤3 0.9 0.83
Common straight boom≤4.5 2.5 0.83
Common straight boom≤6 4.5 0.83
80*45mm 90°folding boom≤3 1 0.83
80*45mm 90°folding boom≤3.5 2.5 0.83
80*45mm 90°folding boom≤5 5 0.83
80*45mm 180°folding boom≤3 1 0.83
80*45mm 180°folding boom≤4 2.5 0.83
80*45mm 180°folding boom≤5 4.5 0.83
100*45mm 2 fence boom≤3.5 2.5 0.83m, small vertical boom is 0.8m, landing boom is 0.9m
100*45mm 2 fence boom≤5 6 0.83m, small vertical boom is 0.8m, landing boom is 0.9m
100*45mm 3 fence boom≤3 3 0.83m, small vertical boom is 1.5m, landing boom is 1.6m
100*45mm 3 fence boom≤4 6 0.83m, small vertical boom is 1.5m, landing boom is 1.6m

 Notice: the “Boom Height ” means height from the boom holding point to the ground.

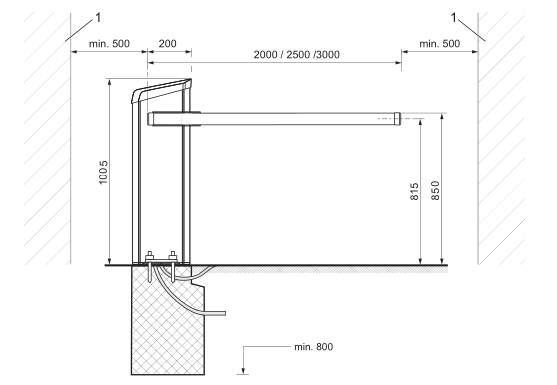

Dimension and Installation

IP65 24V DC Servo Motor Barrier Gate Telescopic Arm Barrier Gate






If you have any question, please contact us freely!

Sales representatives: Keira
Whatsapp: +86 18507481610
Skype: zimin1314
Email: keira@wonsunbarrier.com
