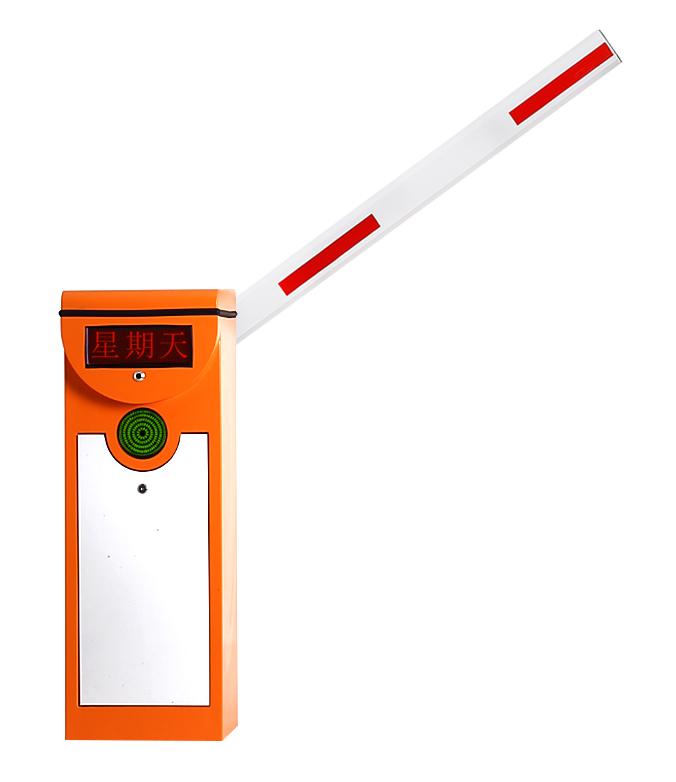

LED Screen Automated Barrier Gate Operator For Access Control System
DZ-134 Barrier Gate with LED screen is a luxury model, specially designed to meet users with high requirements. The LED screen is in the middle of the barrier housing. With a specified software and data wire, you can input the detailed time information like, 20:00, Friday, June 30th 2013. And you can input any words you like, in English and Chinese. This barrier gate also has traffic light indication. Green and Red light remind people whether it can be transited or forbidden to transit.
Specifications:
| Product Name | IP54 Traffic Light Barier Gate Price Boom Gate For Undergroud Parking Lot |
| Model | DZ-134 |
| Operation Time | 0.6s,0.8s,1s,1.8s/3s/6s |
| Working Temperature | -40℃~+75℃ |
| Voltage | AC220V±10%, 110V±10%, 50/60HZ |
| Rated power | 80W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Net weight | 50kgs |
| Boom Type | straight/two fencce/three fence/90degree fold/180 degree fold |
| Max boom length | 6 meters(straight boom) 4.5 meters(2 fence boom) 4 meters(3 fence boom) |
Advanced Functions:
1. Manual release device to operate the barrier when power failure
2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Automatic reversing when the barrier boom meets the obstruction
5. Auto closing realization through menu setting on the control panel
6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
7. RS485 Communication Module is compatible
8. Traffic light interface
9. LED Screen
10. Automatic moisture control
11. Infrared Photocells (optional)
12. Support the external and internal Vehicle Loop Detector (optional)
Product Details:

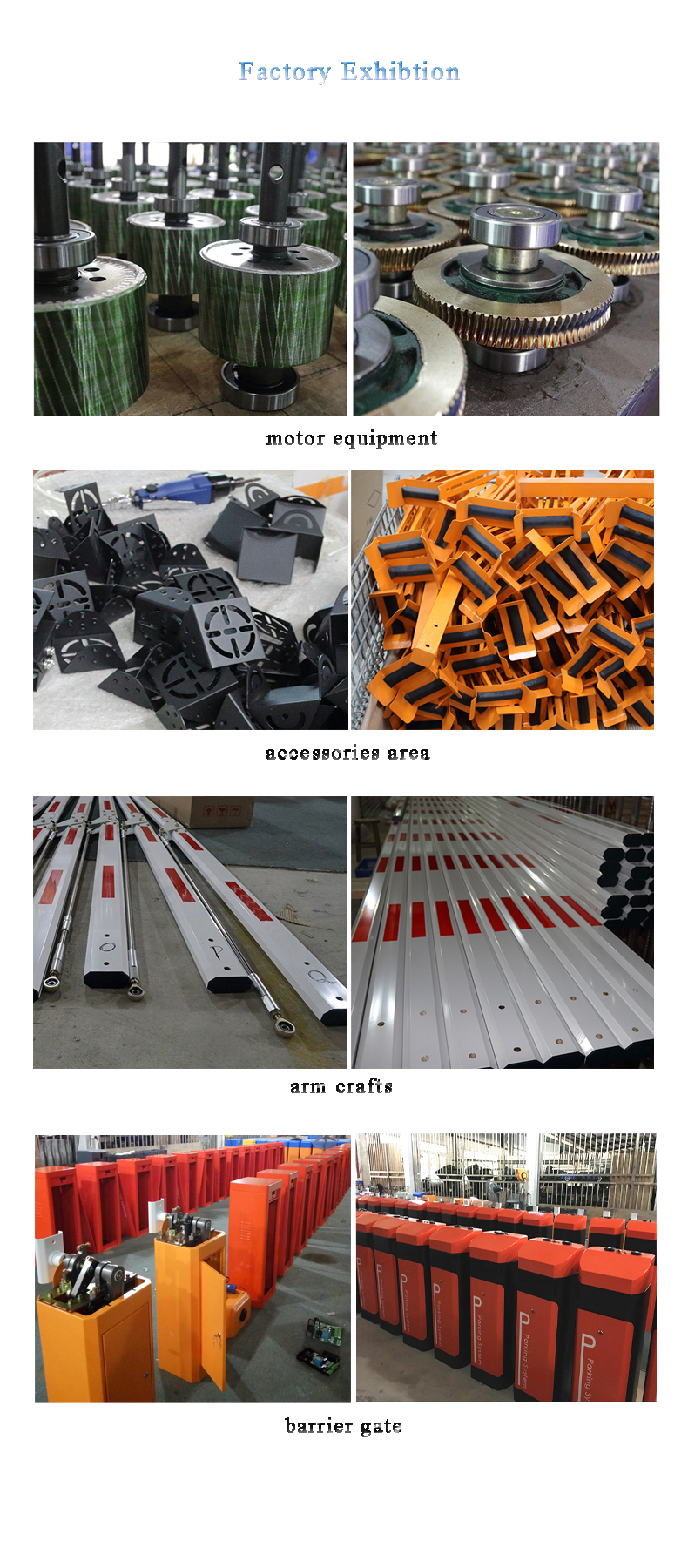

Company Information:
After-sale Service:
1.One-stop procurement service is available.
2.Quickest delivery and best aftersales service.
3.Veteran technician solves all your problems.
4.Passionate and professional sales makes a wonderful team.
5.Competitive and reasonable price with high quality products and advanced technology.
6.Providing the most professional solution as soon as possible according to your requirements.
