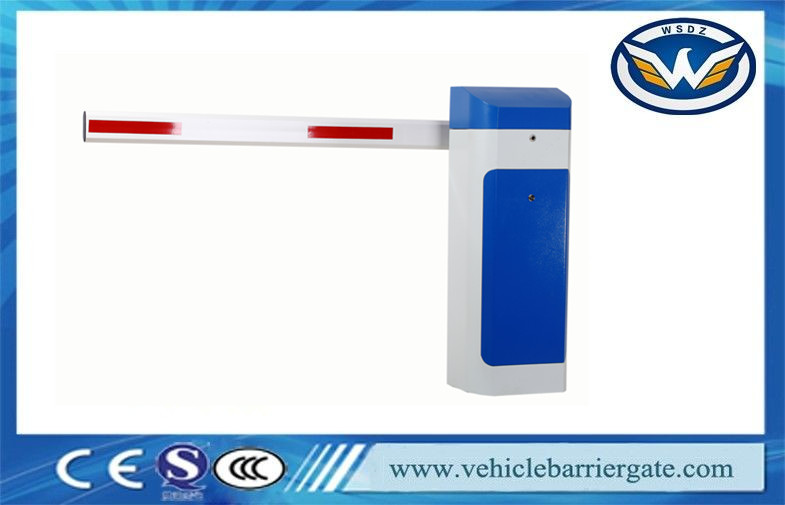

Automatic Close 1.5s Vehicle Barrier Gate Heavy Duty Motor With LED And Rubber Arm
Quick Detail:
| Name | Toll Barrier Gate | Application | Parking System |
| Speed | 0.6/1/1.8/3/6 second | Feature | Manual release |
| Rated Power | 120W | Certificate | CE, ISO, SGS |
| Net Weight | 50KG | Voltage | AC220V, AC110V |
Application:
Highway
Airport
Bus station
Supermarket
Army
And other places with heavy traffic flow
Technical Data:
| Running time | 1sec | 3 sec | 6sec | 3 sec | 6 sec | 3 sec | 6sec | 6 sec | 6 sec |
| Boom type | straight | 90 degree folding | 180 degree folding | 2 fencing | 3 fencing |
| Max boom length | 3m | 4.5m | 6m | 3m | 5m | 3m | 5m | 4.5m | 4m |
| Boom dimension(w*h) | 40*80mm | 45*100mm |
| Boom weight | 3kg | 4.5kg | 6kg | 6.5kg | 8kg | 9kg | 11kg | 7kg | 7.5kg |
| Voltage | 220V±10%, 110V±10% |
| Frequency | 50/60 Hz |
| Motor voltage | 220V |
| power | 80W |
| Working temperature | -35centigrade +75centigrade |
| Protection grade | IP54 |
Functions:
1. Clutch key can be used to open the clutch when power off.
2. Fan cooling machine reduce the motor temperature by high frequency using, never get heat-protecting. Unique temperature calefaction design for low temperature using, prevent freezing in cold weather.
3. Exactitude aluminum alloy die-casting motor base reduce the noise and joint abrasion to prolong the barrier gate working life.
4. Thimble type motor worm design for preventing plugging up in using.
5. Balance spring no noise and easy adjusting design
6. Double limit methods (electronic limit and motor sensor memory limit) for beam rises and falls.
Selection of spring table:
| Boom Type | Boom Length(M) | Spring Selection |
| Straight boom | 6M≥L＞5M | Φ5.5MM+Φ4.5MM |
| 5m≥L＞4.5M | Φ5.5MM |
| 4.5m≥L | Φ4.5MM |
| Straight Boom With Rubber | 6M≥L＞5M | Φ6.5MM+Φ4.5MM |
| 5m≥L＞4.5M | Φ5.5MM+Φ4.5MM |
| 4.5m≥L＞4M | Φ5.5MM |
| 4m≥L＞3.5M | Φ4.5MM+Φ4.5MM |
| 3.5M＞L | Φ4.5MM |
| Folding boom | 6m≥L＞5M | Φ6.5MM+Φ4.5MM |
| 5m≥L＞4M | Φ5.5MM+4.5MM |
| 3.5＞L | Φ4.5MM+4.5MM |
| Fence Boom | Two Fence | 5m≥L＞4M | Φ6.5MM+Φ4.5MM |
| 4M＞L | Φ5.5MM+Φ4.5MM |
| Three Fence | 4m≥L＞3M | Φ4.5MM+Φ4.5MM |
| 3M＞L | Φ4.5MM+4.5MM |
Selection of spring.
| Spring type | Diameter | Spring Length |
| Small size | 4.5MM | 280MM |
| Medium size | 5.5MM | 280MM |
| Big size | 6.5MM | 280MM |
Payments&Shipment
Payment: T/T,Payapl,Western Union ,30% deposit before production,70% balance paid before delivery
Samples can be delivered out within 3days
FedEx/DHL/UPS/TNT for samples, Door-to-Door;
By Air or by Sea for batch goods, for FCL; Airport/ Port receiving
Shipping freight are quoted based on your requests
Discounts are offered based on order quantities
Maintenance
1)Keep the barrier gate clean.
2)Check the joints every month in case of any loose parts.
3)Check the spring elasticity after barrier gate running 30,000times
4)Check the easily worn-out parts(like spring,limit switch)every half year and renew it.
5)Remote control distance will be shortened or not work in cases like big object screening, battery run out.extreme weathers.
Warranty:
1. Drive Motor is warranted against manufacturer’s defect for lifetime
2. Standard warranty for all components is valid for12 months from the date of delivery
3. This warranty does not include damages caused by:
a. Wear and Tear
b. Theft
c. Accidents
d. Act of God & Natural Disaster
e. Unstable power supply (i.e. inconsistent voltage or lightning)
