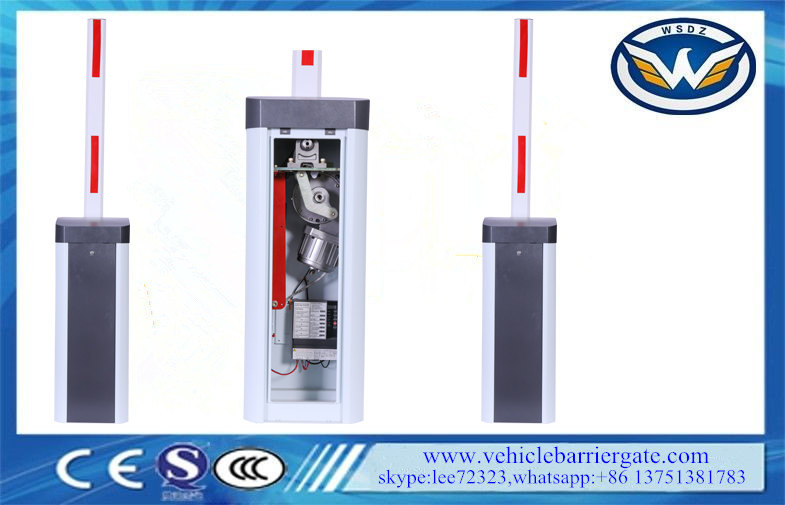

Inverter Motor Toll Barrier Gate 1s CE Certificate For Highway Road
Advantages:
1.The arm direction can be quickly interchanged
2.Open the barrier gate by motor wheel when power off and automatic locking when power on.
3.Balance boom running with a motor transmission of cranks and shafts.
4.Remote control to operate the barrier gate.
5.Auto-reverse when the boom meets obstruction.
6.Infrared photocells connector is available.
7.Loop detector connector is available.
8.Well-intergrated with car parking system equipment,with wire control(must be switch signal).
9.Connector for traffic light(AC220V,power less than 40W)
10.Offering dry contact signal for car parking system(COM,NC,NO)
11.Auto-delay when closing(adjustable)
Technical Data:
1 Working temperature(motor): -35℃~+85℃
2 Working temperature(control panel): -35℃~+85℃
3 Voltage:220V±10%,50HZ or 110V±10%,60HZ
4 Rated Power:80W,capacitor:9+uF/450W
5 Humidity:≤90%RH
6 Distance of remote control:100M＞L≥30M in the open place
Selection of spring.
| Spring type | Diameter | Spring Length |
| Small size | 4.5MM | 280MM |
| Medium size | 5.5MM | 280MM |
| Big size | 6.5MM | 280MM |
Maintenance
1)Keep the barrier gate clean.
2)Check the joints every month in case of any loose parts.
3)Check the spring elasticity after barrier gate running 30,000times
4)Check the easily worn-out parts(like spring,limit switch)every half year and renew it.
5)Remote control distance will be shortened or not work in cases like big object screening, battery run out.extreme weathers.
FAQ:
1. When barrier finish closing, why does the arm open itself slowly?
- the spring is too tight, you need release the spring a little, then test it again.
- see whether the main crank touch the triangle tightly or not, if tightly, adjust it.
- reset the balance position and the electrical limit switch.
2. Why does the controller panel operate with "Di Di Di" abnormal noises?
- As for this, it means the resistance on controller board is broken, if you have professional tools to check,
- then replace that broken resistance, if not, replace that controller panel.
3. Why does the barrier finish half operation of opening and closing?
- If uses our controller panel, you only need to find resistance R37 on controller panel, and repalce it is ok.
4. When barrier closed, why is there a 5 degree angle of inclination?
- the model is not good, and the gear doesn't fit each other tightly.
- the barrier didn't adjust well, need to reset.
5. When barrier finish open, but it closes itself without any order control, what's the problem?
- To check the loop cable first, because the loop cable maybe brokem
- To check the motor sensor, if it is not set well, then reset it in the middle between two holes on sensor rod.
6. Why does the arm wave a lot when opening and closing?
- The spring is very tight
- The Screw touches the rubber absorption tightly, need to reset again.
7. Rubber linning installation suggestion:
- It is good use for fast speed, like 0.6s, 1s, 1.8s and 3s.
- The place with many vehicles come and go, like shopping center, carpark area.
8. Can you accept OEM/ODM order?
- Absolutely, we are manufacturer of barrier gate, with 7 years researching and developing experience.
