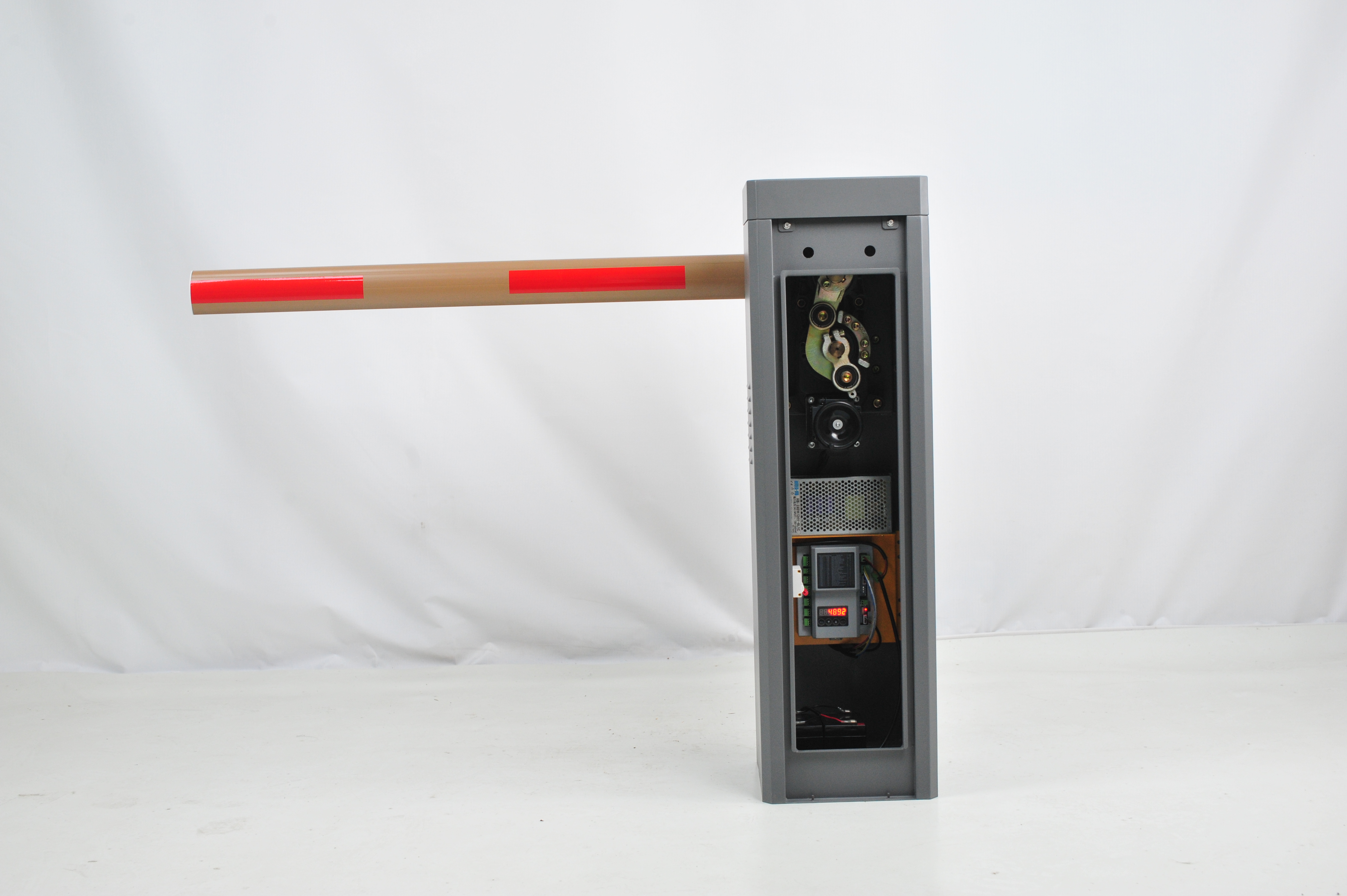

Non-spring Toll Barrier Parking Lot Gate Automatic Barrier Gate Systems 2.55 Seconds Infrared Photocells Connector
Functions
1. The arm direction can be quickly interchanged
2. Balance boom running with a motor transmission of cranks and shafts.
3. Infrared photocells connector is available.
4. Loop detector connector is available.
5. Well-intergrated with car parking system equipment,with wire control(must be switch signal).
6. Remote control to operate the barrier gate.
7. Offering dry contact signal for car parking system(COM,NC,NO)
8. Auto-reverse when the boom meets obstruction.
Technical Data:
| Model No. | DZ-2228 |
| Framework Material | Cold-roll sheet |
| Beam | Aluminum alloy |
| Dimension | 280 * 280 * 975mm |
| Net Weight | 45KG |
| Input Interface | Photo cell, loop detector, parking system,wire control |
| Power Supply | 24/100/240VAC, 50/60Hz |
| Motor Consumption | 200W |
| Working Temperature | -25°C to +60°C |
| Relative Humidity | ≥90% |
| MCBF | 1 million time |
| Remote Control | ≤50m |
| Beam Length | 1M - 6M |
| Opening/Close Time | 2.55sec-8sec |
Analysis of the fault
| Item | Fault | Fault reason | Fault removal |
| 1 | The power indicator is not on. | 1. The power supply is not connected; 2. Fuse blown. | 1. Connect the power supply; 2. Replace the fuse. |
| 2 | The power indicator is on,but remote control have no reaction. | 1.Remote control is wrong; 2. Bad receiver module; 3. Interference from the same frequency. | 1. Relearn the remote control; 2. Replace remote control receiver; 3.Replace other frequencies. |
| 3 | The power button is on, the barrier indicator light is normal,but the motor is not running. | 1. Open or wrong motor line; 2. Motor blocked | 1. Connect the motor line; 2. Manually release the motor. |
| 4 | Unable to up and down limit. | 1. Wrong encoder connections; 2. damaged encoder | 1. Check if encoder is installed correctly; 2. Replace the encoder. |
| 5 | Remote control has no reaction. | 1. Insufficient battery power of the control; 2. Bad control. | 1. Replace the battery; 2. Replace the control. |
| 6 | "E-0 1" appears on the display | Overtime protection is running on the motor | 1. Check if the encoder is installed correctly. 2. Replace the encoder |
FAQ
1. Are you manufacturer or trade company?
We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.
2. What is your MOQ?
As for usual order, there is no MOQ; For OEM order, at least 30 sets.
3. What is your delivery time?
As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.
For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.
