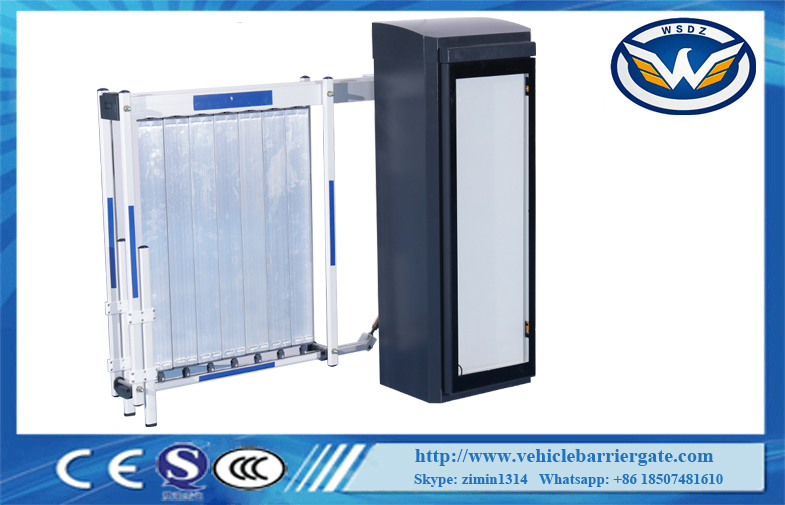

Advertising 24V DC Advertising Parking Barrier Gate Factory Price Brushless DC Motor Advertisement Barrier
Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest, please contact me freely.
Email: keira@wonsunbarrier.com
Skype: zimin1314
Whatsapp: +86 185 0748 1610
Technical parameters
1 Working temperature(motor): -35℃~+85℃
2 Rated voltage:DC24V
3 Running speed:3s-10s
4 Rated current:9.5A
5 Rated power:250W
6 No-load speed:2500rpm
7 Rated speed:1800rpm
8 Output Power:120N.m
9 Relative humidity:≤90%
10 Remote control distance:≤100M(in the open place)
11 IP Degree:IP44
12 Max length of arm:4.5M
Features
1 The running speed can be adjusted from 3sec to 10sec.
2 Open the barrier by motor wheel when power off.Automatically reset when power on.
3 Curved crank arm three-link movement structure,operation stable
4 Wireless remote control open and close.
5 Arm auto reverse( force adjustable)
6 Infrared photocell is available
7 Loop detector is available
8 Connect parking management system open, close signal.(request open and close signal)
9 Traffic light port(2A12V/220VAC, less than 40W traffic light can be used)
10 Offering limit signal for car parking management system( output COM/NO/NC)
11 Delay closing arm function
12 RS485 or CAN internet communication interface( no need to add module)
13 Counting interface
14 24 backup battery interface(can be connected with solar power)
Arm length speed comparison table
| Menu Parameter Unit Arm length | UP | DOWN |
| H00-00 | H00-02 | H00-04 | H00-01 | H00-03 | H00-05 |
| 4.5M | 30 | 35 | 8 | 30 | 42 | 8 |
| 3.8M | 35 | 35 | 8 | 35 | 42 | 8 |
| 3M | 65 | 30 | 10 | 60 | 35 | 10 |
(the parameter is based on the company’s arm)
