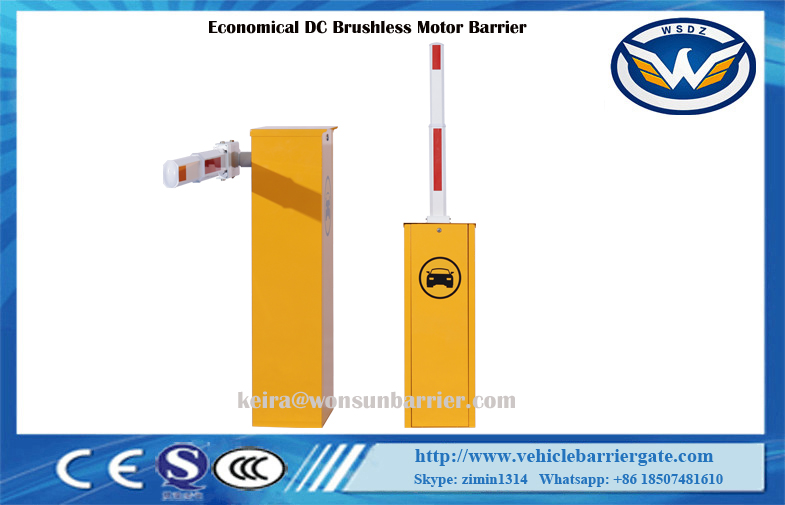

Economical DC Motor Automatic Barrier Gate With 24V DC Motor Brushless Hall Limit
Safety Precautions
To ensure your safe operation, please strictly in accordance with the provisions of this manual.
- To avoid personal injury, it is strictly forbidden to open the door or cover when barrier working.
- The barrier housing must be connected to the ground to prevent inductive electric shock.
- It is strictly forbidden to stand, walk or place objects under the boom/ arm when barrier working.
- The boom/arm and the spring have been matched to the balance state before goods leave out
- our factory. To avoid the danger of the balance being lost, the length and weight of the boom/arm
- can not be increased or decreased at random. If you need to change it, please ask the professional for advice.
Technical parameters
| Working temperature(motor) | -35℃~+80℃ |
| Rated voltage | DC24V |
| Running speed | 1.5s-8s |
| Rated current | 8.58A |
| Rated power | 140W |
| No-load speed | 1850rpm |
| Rated speed | 1400rpm |
| Remote control distance | ≤100M(in the open place) |
| IP Degree | IP44 |
| Max length of arm | :6M |
Features
1 The running speed can be adjusted from 1.5s to 8s
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire control(must be switch signal)
10 Connector for traffic light(AC220V,power less than 40W)
11 Offering dry contact signal for car parking system(COM,NC,NO)
12 Auto-delay when closing(adjustable)
Type Length and Operating Speed Parameters of Barrier Gate
| Arm type | Arm Length (L) | Operation time(S) | Height between arm and ground (M) |
| Straight arm | 6M≥L>5M | 5S | H=0.83M |
| 5M≥L≥4.5M | 4S |
| 4.5M>L≥3M | 3S |
| 90 degree folding arm | L≤5M | 5S |
| 180 degree folding arm | L≤5M | 5S |
| Two fence arm | 5M≥L≥4M | 6S | H=0.9M |
| 4M>L≥3M | 3S |
| Three fence arm | 5M≥L≥4M | 6S | H=1.5M |
| 4M>L≥3M | 5S |
Interchange descriptions
The product direction can be interchanged, divided into 6 steps.
Step 1: remove the M8X20 inner hexagonal screw,take out the machine core;
Step 2: remove the electrical supporting plate from left side to the right side;
Step 3: remove the M10*30 fixed screw on the boom tray (see figure 1);
Step 4: using the M14*150 screw to pull out the boom tray head(see figure 2);
Step 5: install the boom tray head from the original left to the right side,or the original right to the lest side;
Step 6: put the machine core back into machine case, fixed the M8*20 hexagonal screw, direction interchange
is completed, no need to adjust other Settings.
